PSO-15 Series

The PSO-15 series is a family of open frame AC-DC power supplies housed in a compact board mount package. Featuring 4 kVAC isolation and no-load power consumption less than 100 mW, these 15 W open frame modules are ideal for space-constrained, low power ITE, industrial, and consumer electronic applications.

Features
  • Compact footprint
  • 4000 VAC isolation
  • No-load power consumption < 0.1 W
  • Short circuit protection (SCP)
  • Over voltage protection (OVP)
  • Over current protection (OCP)

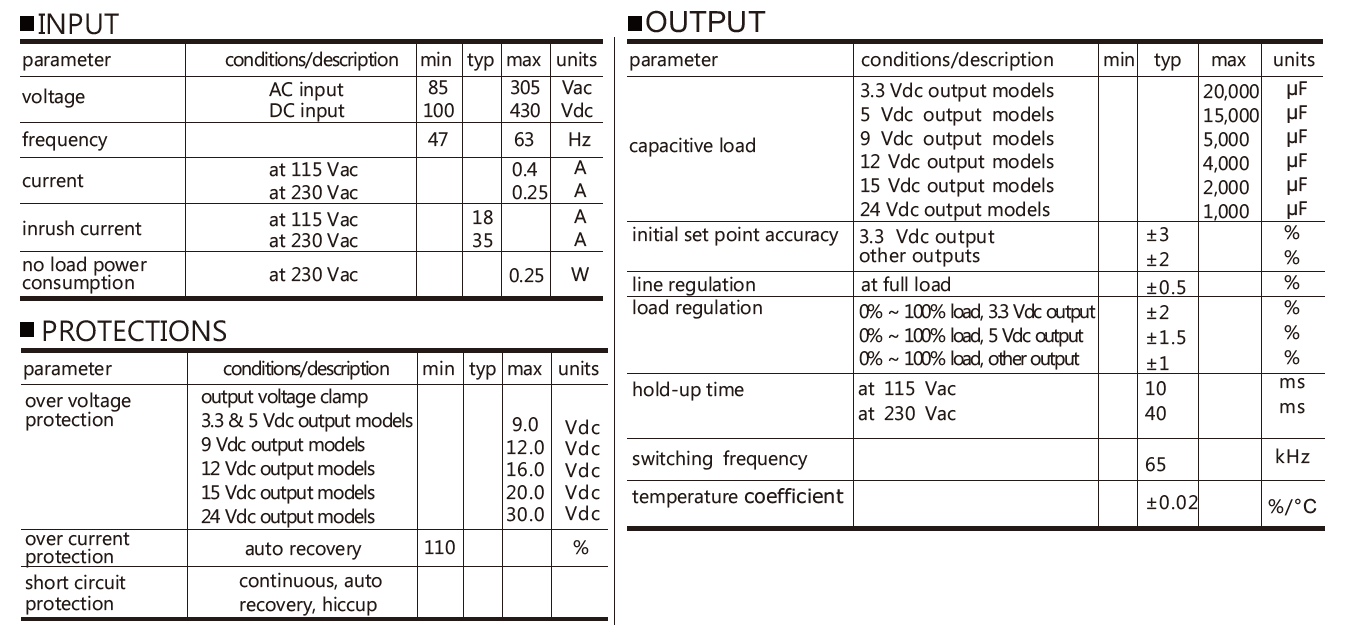

Specifications
  • Power (W): 14 ~ 15.4
  • Input Voltage Range (VAC): 85 ~ 305
  • Output Voltage (VDC): 3.3 ~ 24
  • Operating Temperature Range (ºC): -25 ~ +50
  • Cooling Type: Convection

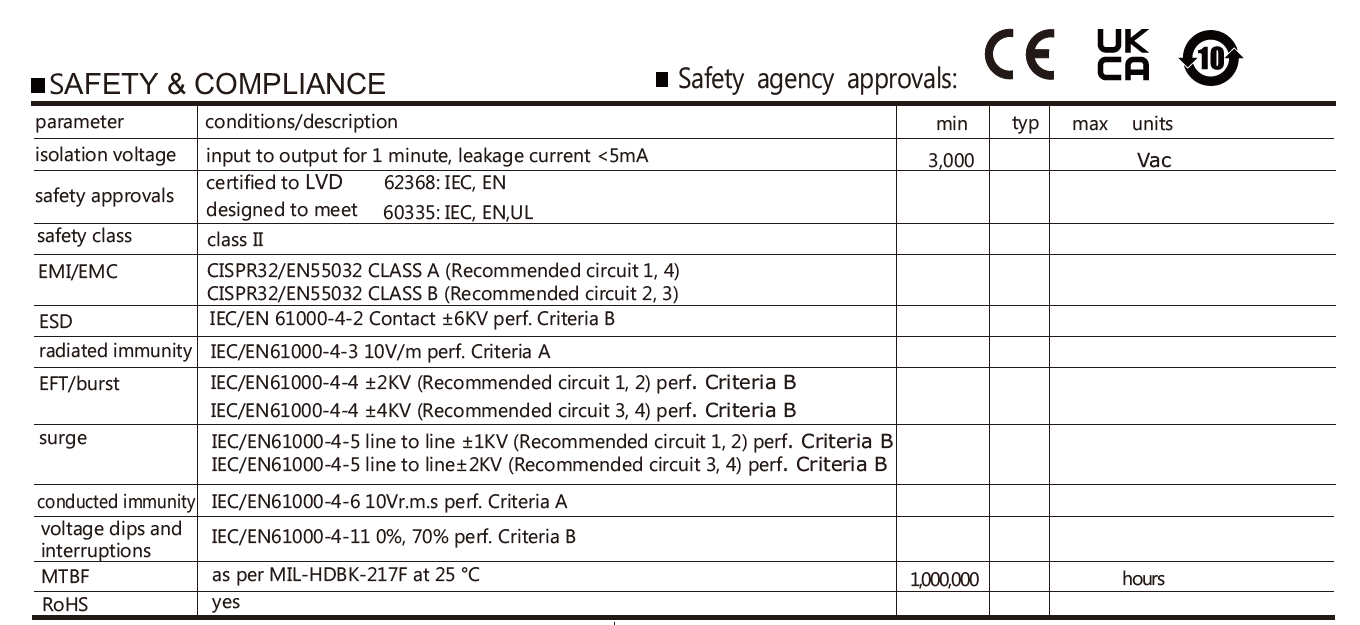

  • Safety Standards: UL/EN 62368-1
  • Safety Approvals: CE, UL/cUL
  • RoHS Compliant: Yes

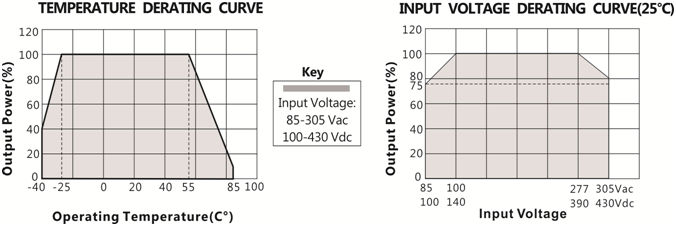

-DERATING CURVES

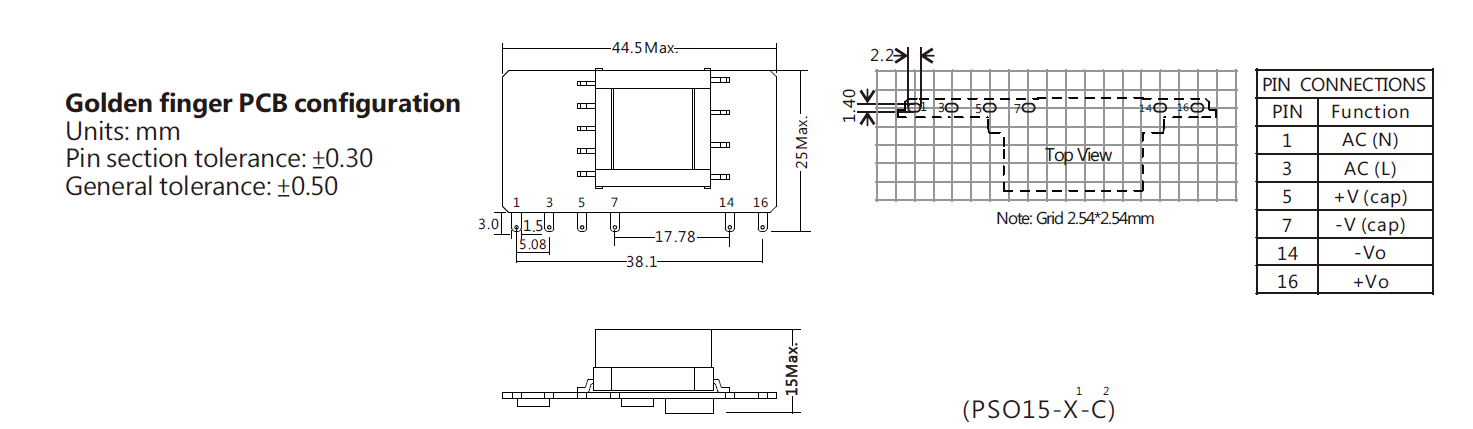

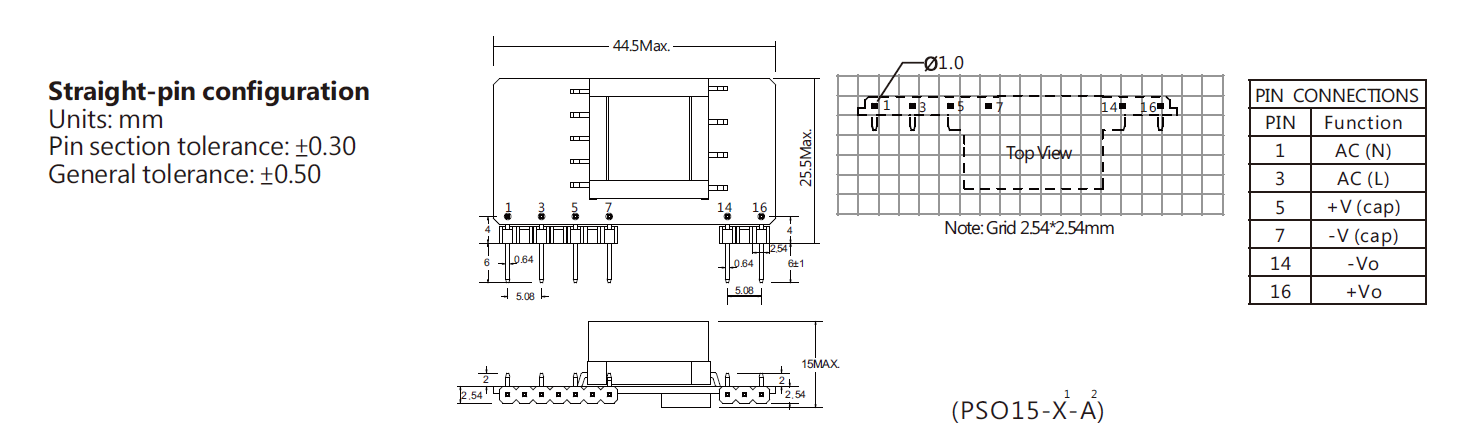

-MECHANICAL DRAWING





Note:
1. X=Output Voltage ;

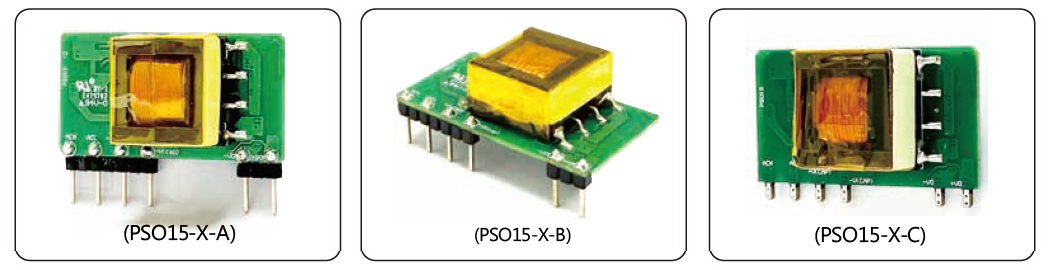

2. A: Straight pin ; B: Bent pin ; C: Golden finger PCB type
3. The separation between all primary and secondary circuits must be maintained as follows to maintain the safety requirements:
Creepage : >6.4mm
Clearance : >4.0mm
