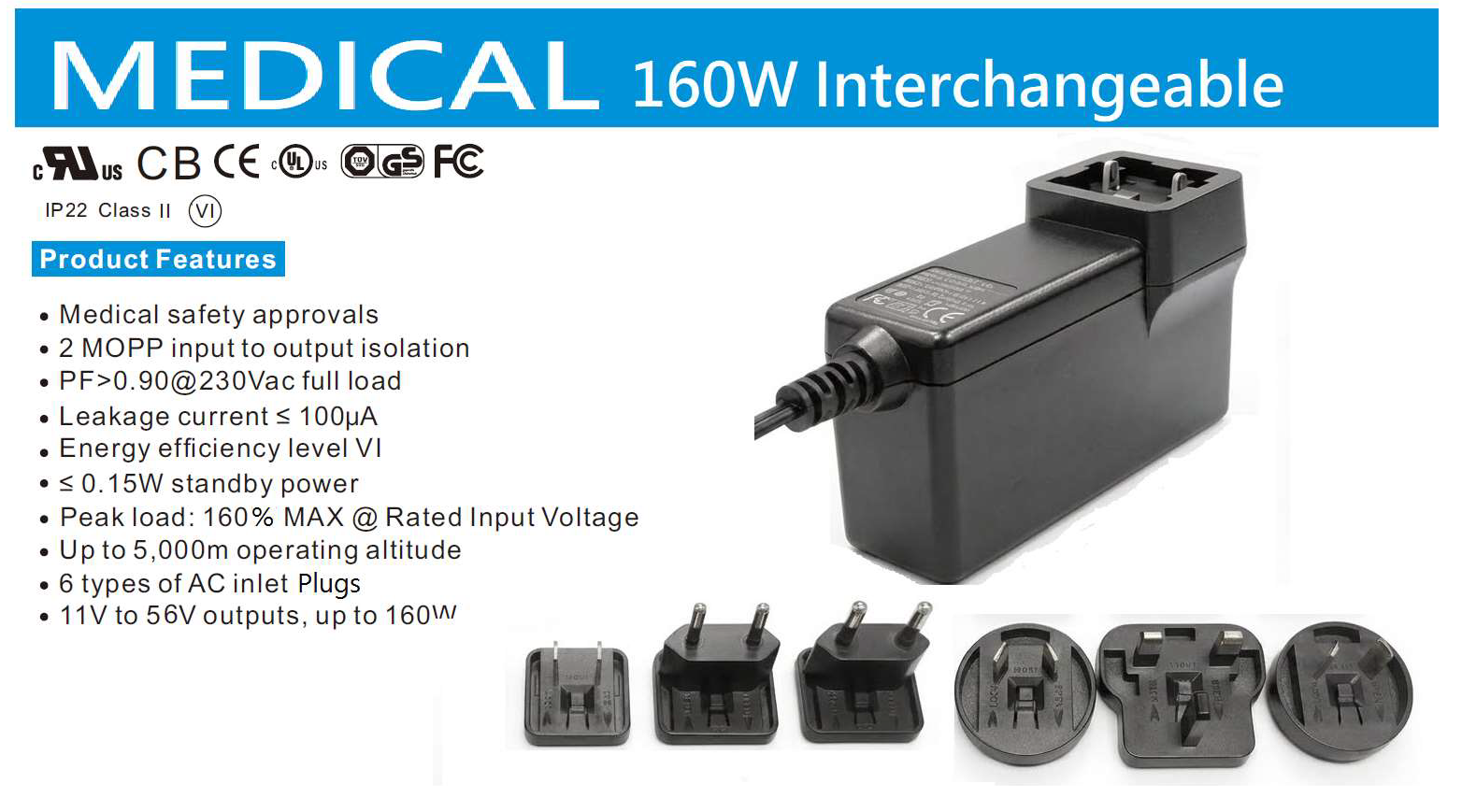

160W Medical AC-DC Interchange Wallmount Power Adapter

  160W Medical AC-DC Interchange Wallmount Power Adapter
  2 x MOPP isolation for medical device applications
The GMP160 series is a range of Interchangeable Wallmount single output AC-DC medical power adapter that delivers output power ranging from 110W to 160W and offers single output voltages ranging from 12V to 56V.

The GMP160 series is specifically designed for medical applications with 2 x MOPP isolation, and is approved for Class II applications.

With world-wide medical safety approvals, class B compliance for conducted and radiated emissions, high efficiency, high reliability, 4kVAC isolation, the MCE series benefits system designers with easy integration into a wide range of BF rated medical applications including imaging, patient treatment, surgical equipment, and home healthcare applications.


Features Include:

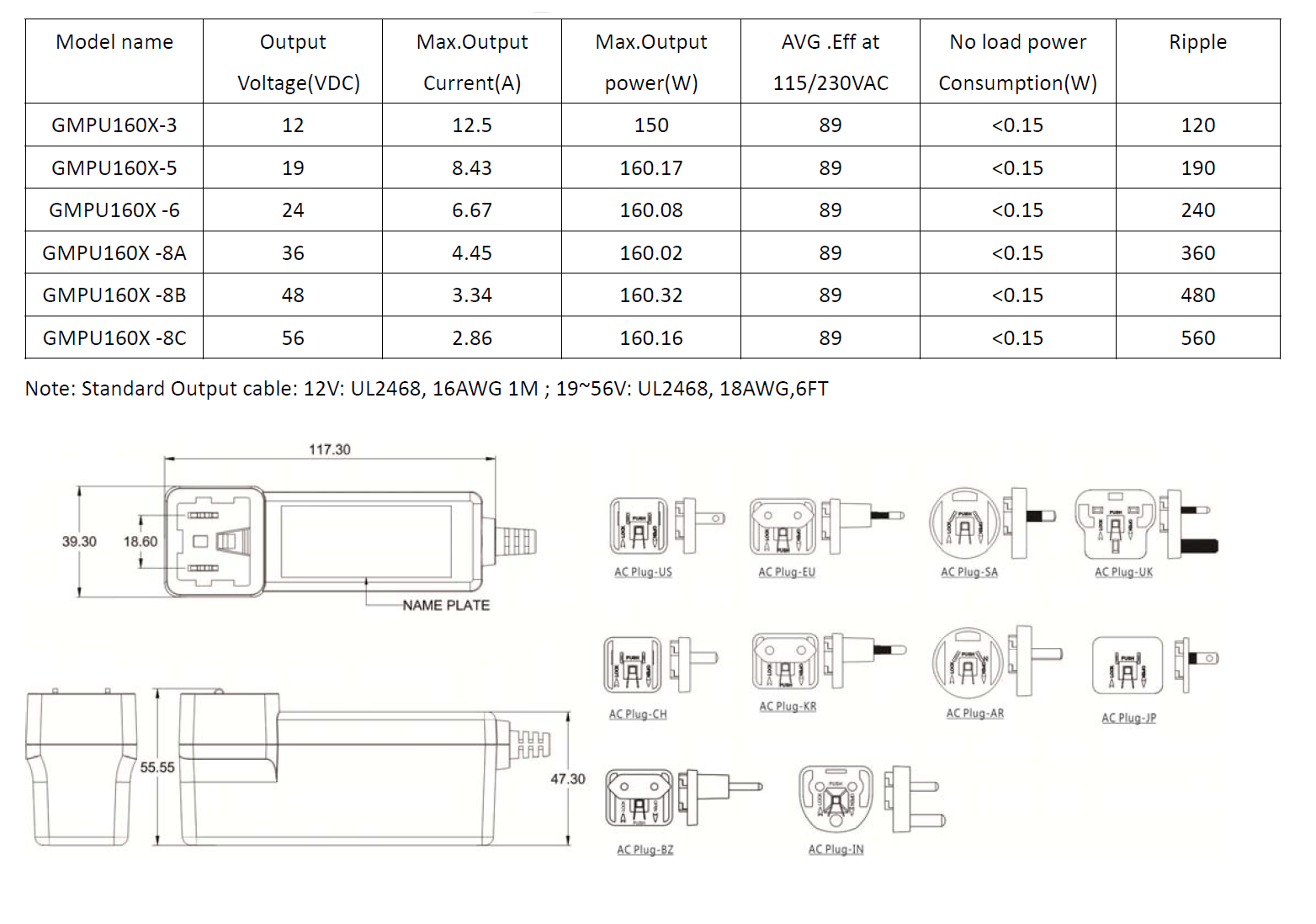

Single output voltages from 12V to 56VDC
Input range 90-264VAC
High efficiency, up to 89%
EN/IEC 60601-1 medical safety agency approvals, 2 x MOPP
Class B conducted & radiated emissions
IEC class II insulation rating
