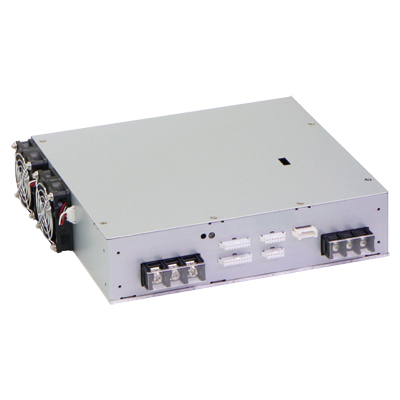

2500W DC-DC Power Supply
Step-up DC-DC converter optimum for battery input like that of AGVs

DC Input Voltage:DC19-37V/37-74V/74-128V
DC Output Voletage:+10~284Vdc

  • A wide range of input from 19 to 128 VDC supported (input voltage range setting with a DIP switch)
  • Remote ON/OFF feature
  • Various protective features included
  • The capacity may be increased by the parallel connection
  • Eliminates the use of electrolytic capacitors
  • Approx. 15% smaller in volume and 20 to 50% increase in the output power in comparison with conventional models (with the rated power input)
  • Energy saving design to reduce the power consumption
  • 15W with no load (with 48V input, remote ON)
  • 30mW remote OFF (with 48V input)
  • The fan stops automatically with a small or no load to reduce the power consumption and extend the service life of the fan.
Output specification

Rated Input Voltage (DC) 24V 48V 96V
Range of Input Voltage (DC) 19~37V 37~74V 74~128V
Output Voltage (DC) 284V 284V 284V
Max. Current 4.23A 8.8A 15.9A
Max. Power 1200W 2500W 4500W
Peak Current 5.28A 14.1A 17.6A
Peak Power (Max. 10 seconds) 1500W 4000W 5000W









* Input Voltage range setting with a DIP Switch

Specifications:
Compatible case size Other
Outline drawing 283Wx62Hx246D
Weight 4 kg typ
Input Voltage DC 19-37V/37-74V/74-128V
Efficiency DC 24V input 90%(typ.)/48V input 94.5%(typ.)/96V input 97%(typ.)
Power factor
Input changeover system Change-over by the hand
DC input
Safety EN50178 compliant
High frequency current regulation
EMI standard
(Input feedback noise)
CE marking
EMS immunity
MTBF
Operating temperature -10 to 60 deg.C
Leakage current
Cooling systems Forced air cooling
Insulation
Output ground connection
Warranty 3 year after delivery
