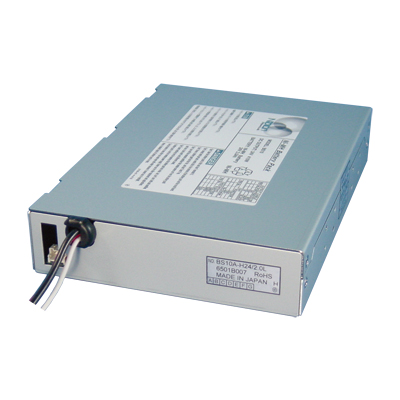

Ni-MH Battery Package
• Applicable power supplies
- HNSP9-520 series
- eNSP3-450 series
- mNSP3-450 series
• Built-in heater to prevent decrease of capacity at low temperature. Battery package condition signal available (at charging or backup).
• 3.5-minute backup time at 300W, 6 minutes at 200W.
• RoHS compliant
- HNSP9-520 series
- eNSP3-450 series
- mNSP3-450 series
• Built-in heater to prevent decrease of capacity at low temperature. Battery package condition signal available (at charging or backup).
• 3.5-minute backup time at 300W, 6 minutes at 200W.
• RoHS compliant

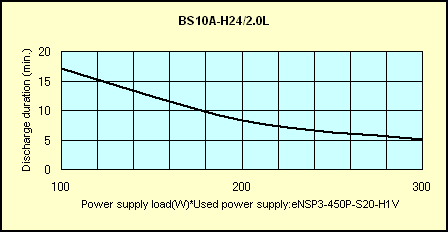

- Battery Data
Specifications:
| Compatible case size | 5 inch bay size | |
| Outline drawing | 146Wx38Hx200D | |
| Weight | 1.80 kg typ | |
| Applied battery | Sealed Ni-MH battery (1.2V x 20 in series connection) | |
| Nominal battery power voltage | 24V | |
| Rating capacity | 2000 mAh | |
| Built in fuse rating | 30A 32V | |
| Operating temperature | 0 to 45 deg.C/10 to 90% | |
| Storage temperature/humidity | 30 days max.: -20 to 50 deg.C 90 days max.: -20 to 40 deg.C One year max.: -20 to 30 deg.C |
|
| Warranty | One year after delivery | |
